What Are the Different Components Called?

TinySurveyor Plotter

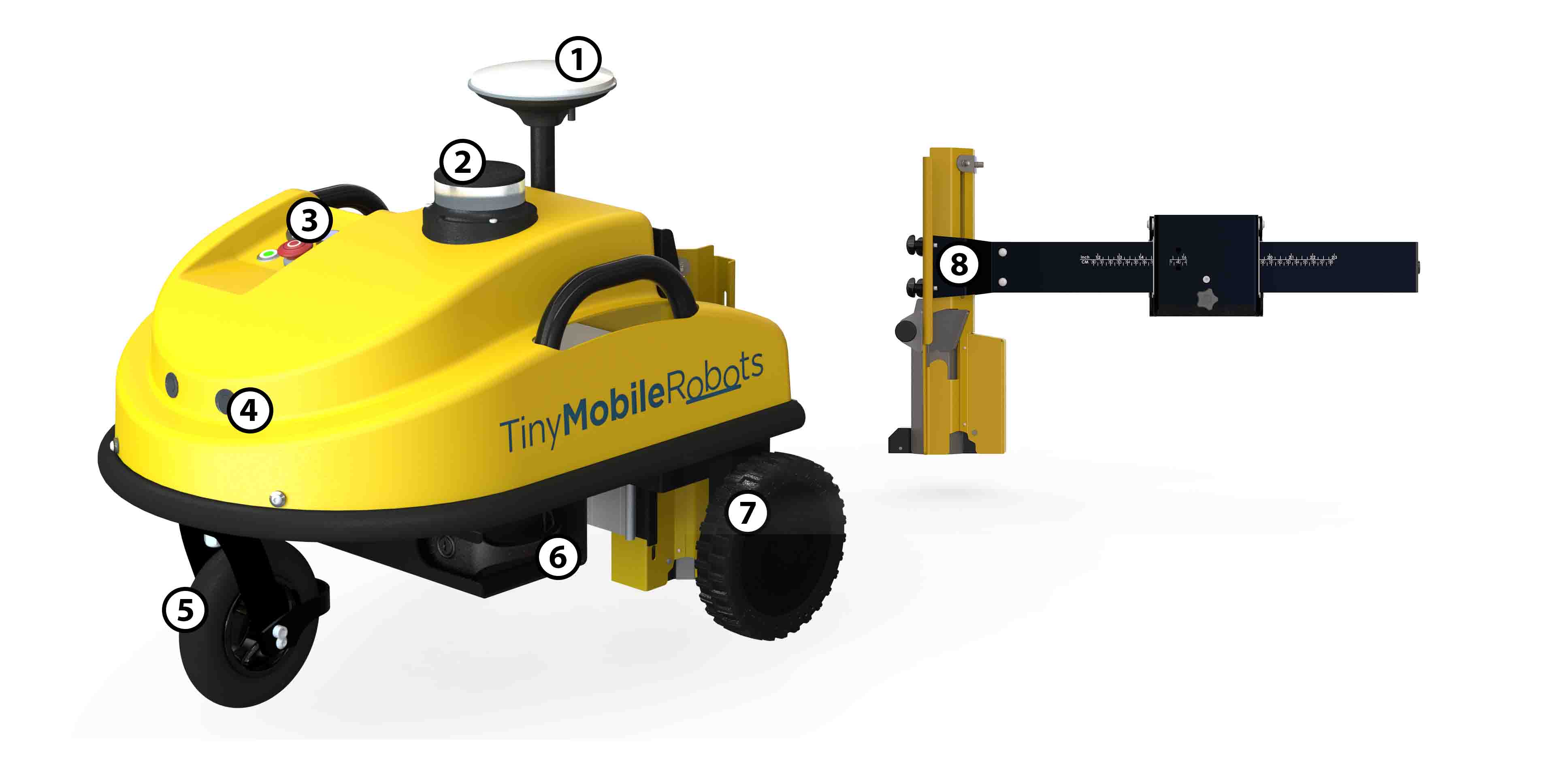

Image: Front side of TinySurveyor Plotter with numbered components

1. GNSS antenna (only included for pre-installed internal GNSS)
2. Safety light
3. Control panel
4. Obstacle censors
5. Caster wheel
6. Replaceable battery
7. Motor wheel
8. Side mount tool

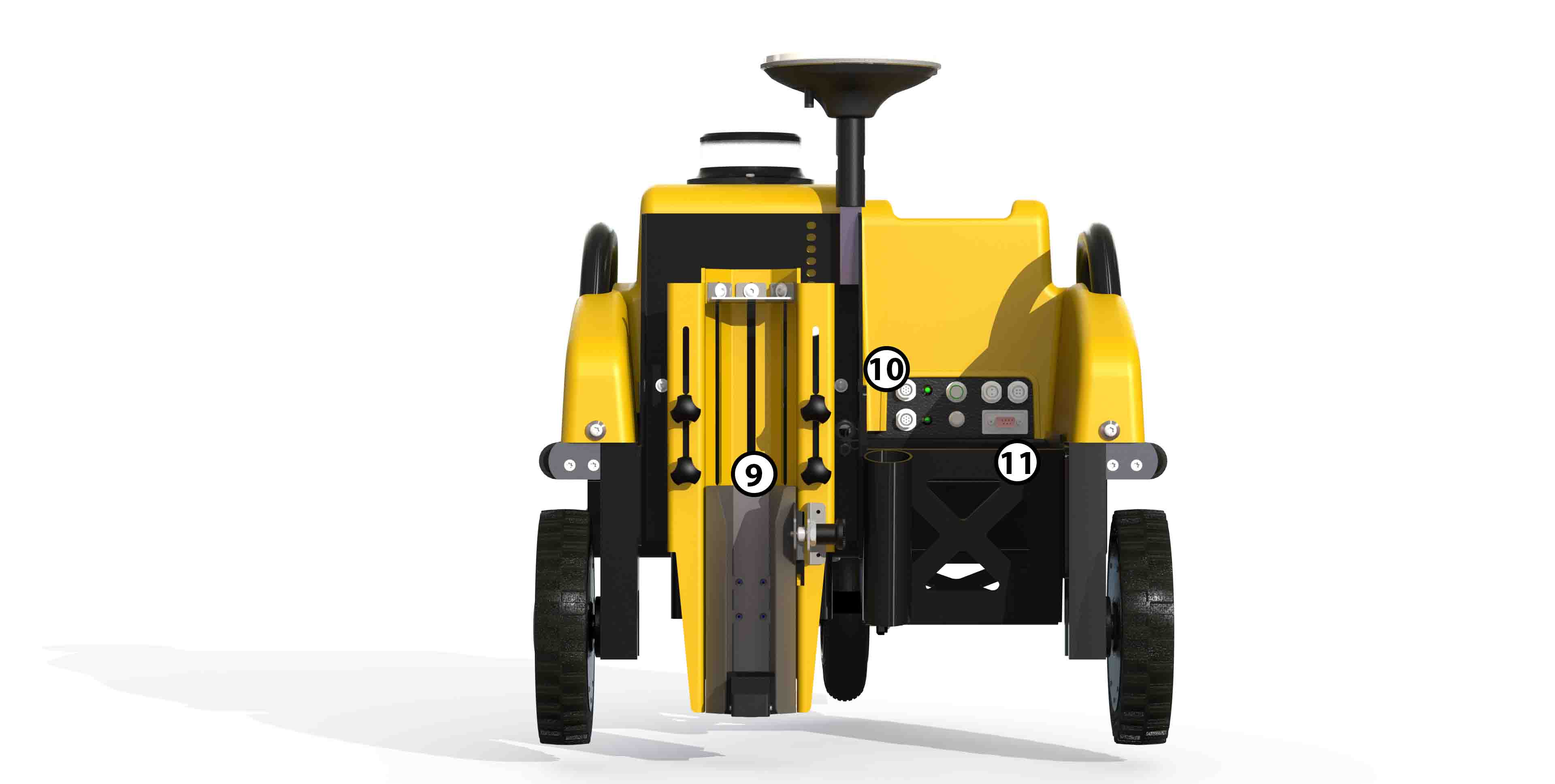

   Image: Rear side of TinySurveyor Plotter with numbered components

 9. Spray tool

 10. Interface box

 11. Storage area

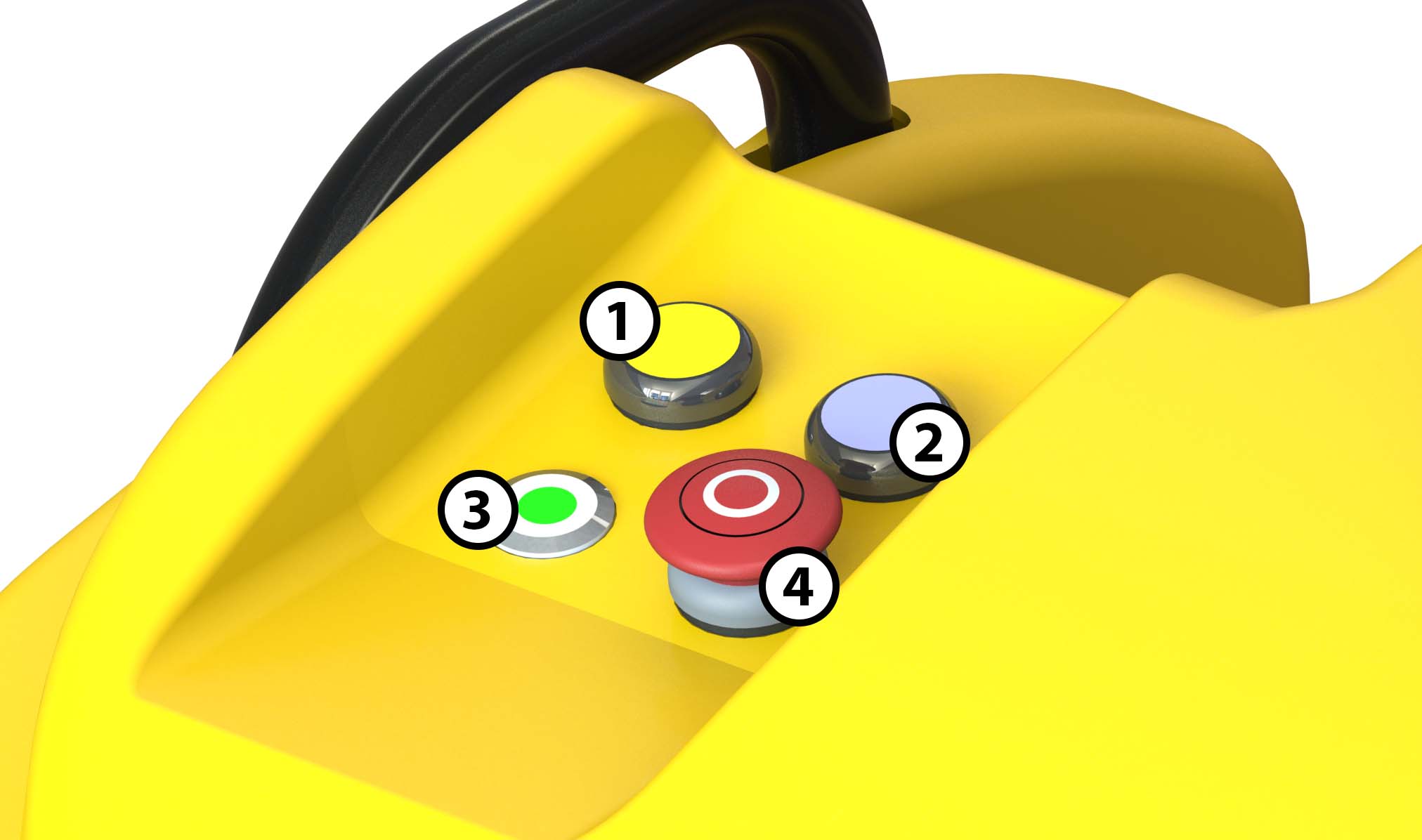

Image: Top of the TinySurveyor Plotter and closeup of the interface box

1. Test outlet 1 button / outlet 1
2. Test outlet 2 button / outlet 2
3. Status light
4. Emergency button
5. ON/OFF safety beacon
6. Light mode
7. 12 volt outlet
8. USB outlet (requires adapter for USB-A)
9. DB9 outlet (RS232)

TinySurveyor Terra

Image: Front side of TinySurveyor Terra with numbered components

1. GNSS antenna (only included for pre-installed internal GNSS)
2. Tool carrier (picture shows spray tool mounted)
3. Motor wheels
4. Status light
5. Emergency stop button
6. Replaceable battery
7. 5/8” GNSS mount
8. Electronic box
9. USB connector
10. Caster wheel
11. Robot battery charger
12. Tablet charger
13. Tablet
14. Side mount and extension cable
