How Do I Charge the Robot and Tablet?

Updated

Charging the robot battery

  1. Plug the power cable into the power adaptor. Then plug the round charging cable into the battery. The connector is located next to the battery handle.
  2. Plug the power cable into an electrical socket.
  3. When fully charged, the battery light will turn green.
  4. Disconnect the battery. First remove the power jack from the electrical socket; then remove the round charging jack from the battery.

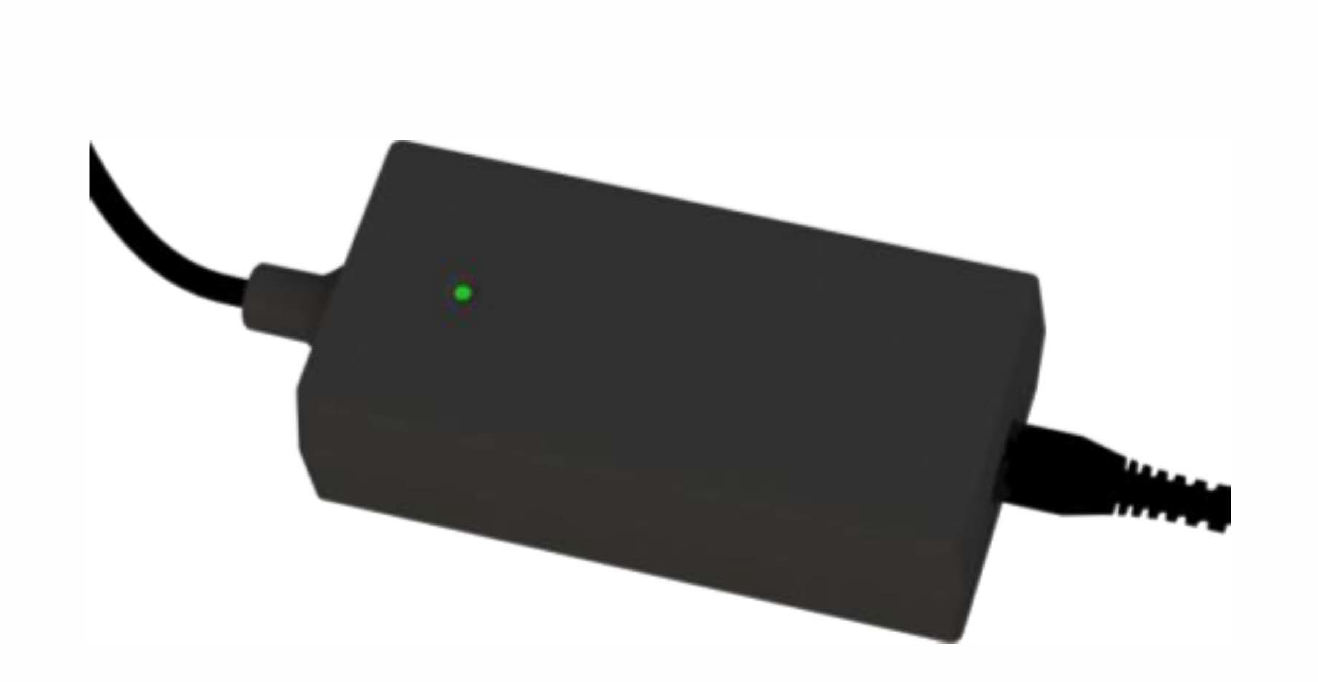

Image: Light indicator on charger

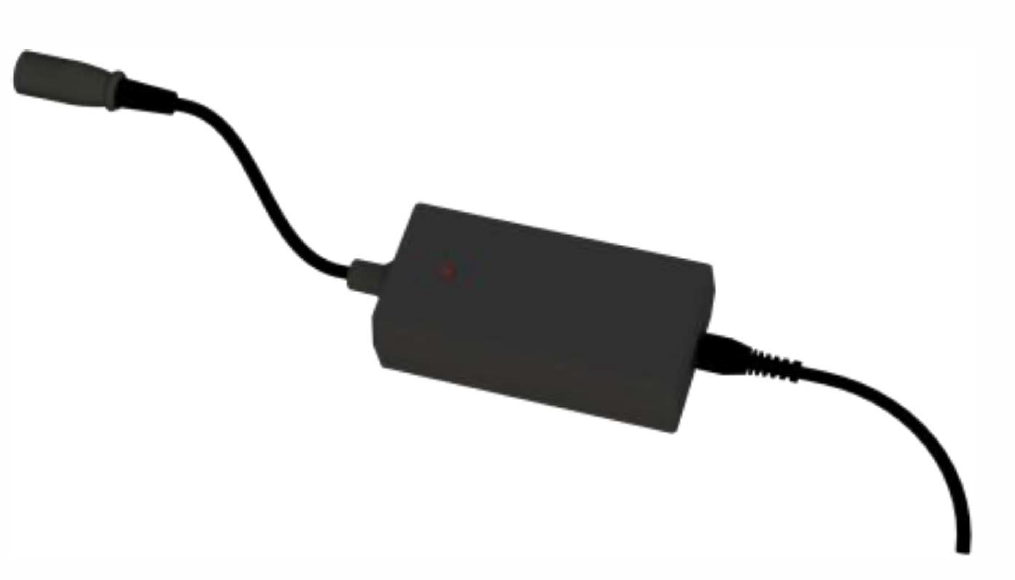

Image: Charging jack and battery connector



Battery safety measures

  • Only charge the battery with the supplied charger. The charger must be connected to 100-240 VAC, 50-60 Hz.
  • The battery must not be charged while it is connected to the robot.
  • The battery must only be charged indoors at normal room temperature, and it should always be supervised while recharging.
  • Do not charge the battery unattended or overnight.
  • Do not charge batteries that have been exposed to blows or other forms of external damage. There is a risk that the battery could explode if this safety measure is not respected.
  • The battery must always be fully charged when stored. The battery must be recharged every month if stored for a longer period.
  • Always use chargers, cables and batteries approved by TinyMobileRobots when charging the robot battery and tablet. Unapproved chargers may cause the battery to explode or damage the devices.
  • Make sure the battery rack is cleared, i.e. no dirt or objects are blocking inside the rack.
  • If the battery is not pushed sufficiently into the battery rack, the key cannot lock the battery correctly.



Other robot charger types

Chargers sold before 2022 may look different. For these chargers, please see the following instructions.

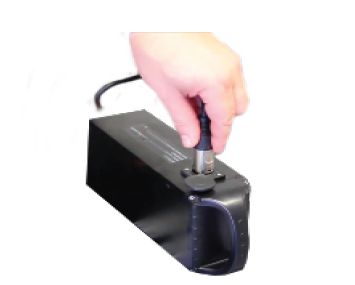

  1. Insert the charger cable into the battery.




  • When charging, both lights will be red.
  • When charged, the CHARGE light will turn green.

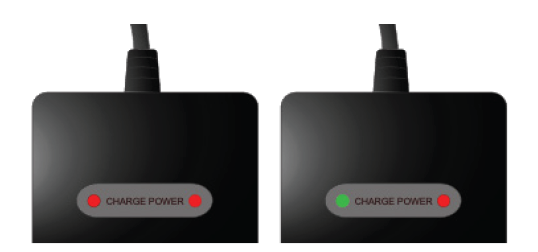

Image: Charge light colors for older robot chargers



Charging the tablet

Use the included charger to charge the tablet.

  1. Connect the USB cable to the USB power adaptor.
  2. Plug the micro USB into the connector.
  3. Plug the USB power adapter into an electrical socket.
  4. Disconnect the tablet from the charger when fully charged. First, unplug the micro USB from the tablet. Then unplug the USB power adaptor from the electrical socket.
